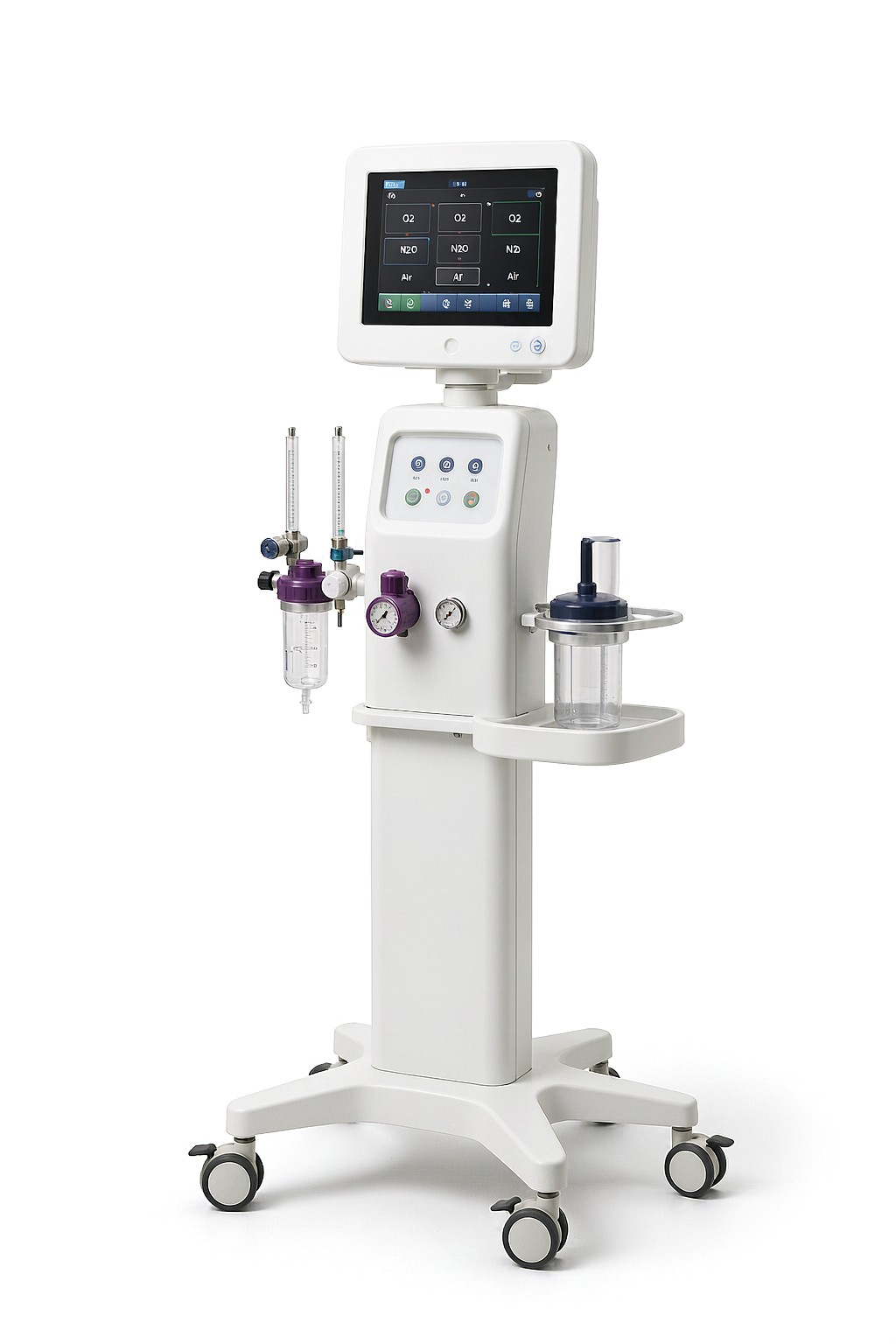

A high-end animal-specific anesthesia workstation refined by long-term clinical feedback from pet hospitals. The turbine ventilator delivers precise tidal volume control with complete monitoring (pressures, volumes, compliance, resistance) and full alarm protection. Dual flowmeters, quick-oxygen flush valve, AC400 heated absorber and 304 stainless non-rebreathing interface cover patients from <3 kg to 150 kg.
Key Selling Points
✓ Electric-drive, electronically controlled ventilator with 10.2-inch TFT color display and shuttle-dial parameter setting
✓ 8 ventilation modes: VCV, PCV, SIMV-VC/PC, PRVC, PSV, MAN/SPONT, Standby
✓ Tidal volume 5-1500 ml with built-in electronic PEEP 3-30 cmH2O – covers tiny to giant breeds
✓ High-precision isoflurane vaporizer with flow/temperature/pressure compensation and bypass valve
✓ AC400 heated absorber circuit with water trap; 1.6 L sodalime canister for animals up to 150 kg
✓ Built-in lithium battery 3 h; oxygen concentrator tray and monitor platform on trolley
Specifications
| Ventilator | Electric turbine, 10.2-inch TFT |
|---|---|
| Modes | VS/VCV/SIMV-VC/PRVC/SIMV-PRVC/PCV/SIMV-PC/PSV/MAN/Standby |
| Tidal volume | 5-1500 ml |
| Frequency | 1-100 BPM |
| PEEP | OFF, 3-30 cmH2O |
| Flowmeter | Dual-tube high precision 0-1 / 0-10 L/min |
| Vaporizer | Isoflurane, compensated, bypass valve |
| Sodalime canister | 1.6 L, patients up to 150 kg |
| Monitoring | Ppeak/Pmean/PEEP/Pplat, MV, compliance, resistance |
| Options | O2 / EtCO2 / anesthetic agent monitoring |
| Battery | Built-in, > 3 h |
| Interfaces | USB, RS232, VGA |
