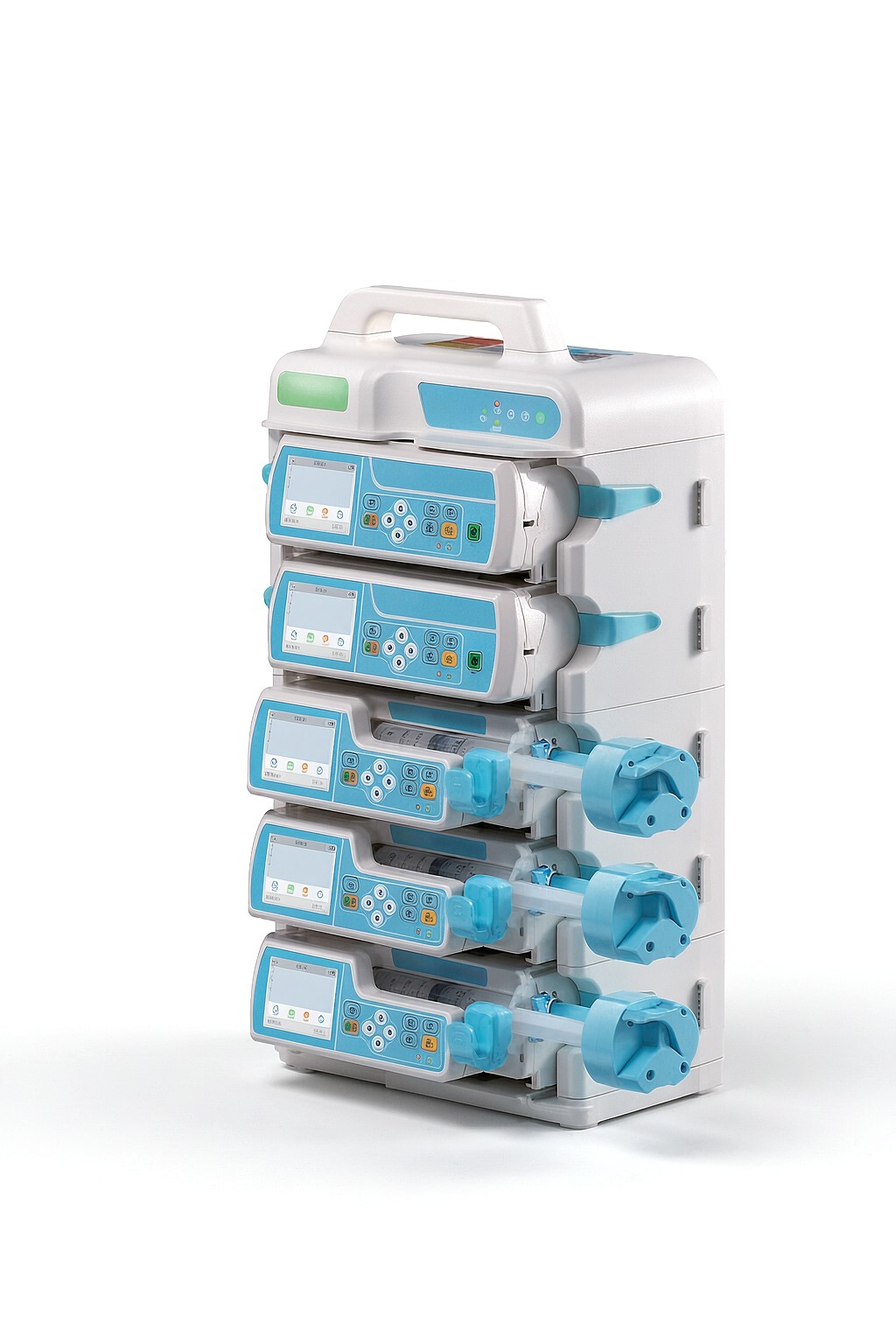

The HAWK-WS1/WS2 infusion information collection system combines syringe pumps and infusion pumps into a modular workstation. Pumps dock without tools and can be hot-swapped for patient transport. Double ultrasonic bubble sensors, dynamic pressure monitoring and centralized sound-light alarms safeguard every channel. The WS2 controller adds a 7-inch color touchscreen, cascade infusion to prevent drug-concentration fluctuation, and HIS/CIS connectivity via the HK-M1000 system.
Key Selling Points
✓ Plug-in modular design – freely combine infusion and syringe pumps up to 12 channels
✓ WS2 adds a 7-inch touch screen for unified display, cascade infusion and drug-library management
✓ Double ultrasonic bubble detection and dual pressure sensors with 11 adjustable occlusion levels
✓ Anti-free-flow design: door-open auto stop; top alarm tower synchronizes all pump alarms
✓ Built-in drug library (~1000 drugs) and 30,000+ (450,000 on WS2) history records
✓ Hot-swappable pumps keep infusing during patient transfer; WIFI + HK-M1000 links to HIS/CIS
Specifications
| Channels | Up to 12 modular pump positions |
|---|---|
| Controller (WS2) | 7-inch touch screen, cascade, drug library |
| Infusion pump accuracy | +/-5% |
| Syringe pump accuracy | +/-2% |
| Infusion rate | 0.10-2001.00 ml/h |
| Syringe sizes | 5/10/20/30/50(60) ml auto-recognition |
| Bubble detection | Dual ultrasonic, 25-800 ul, 6 levels |
| Data storage | 30,000+ records (WS2: 450,000) |
| Power | AC100-240V; battery > 3 h |
| Dimensions (pump) | 212/258 mm wide series per configuration |
