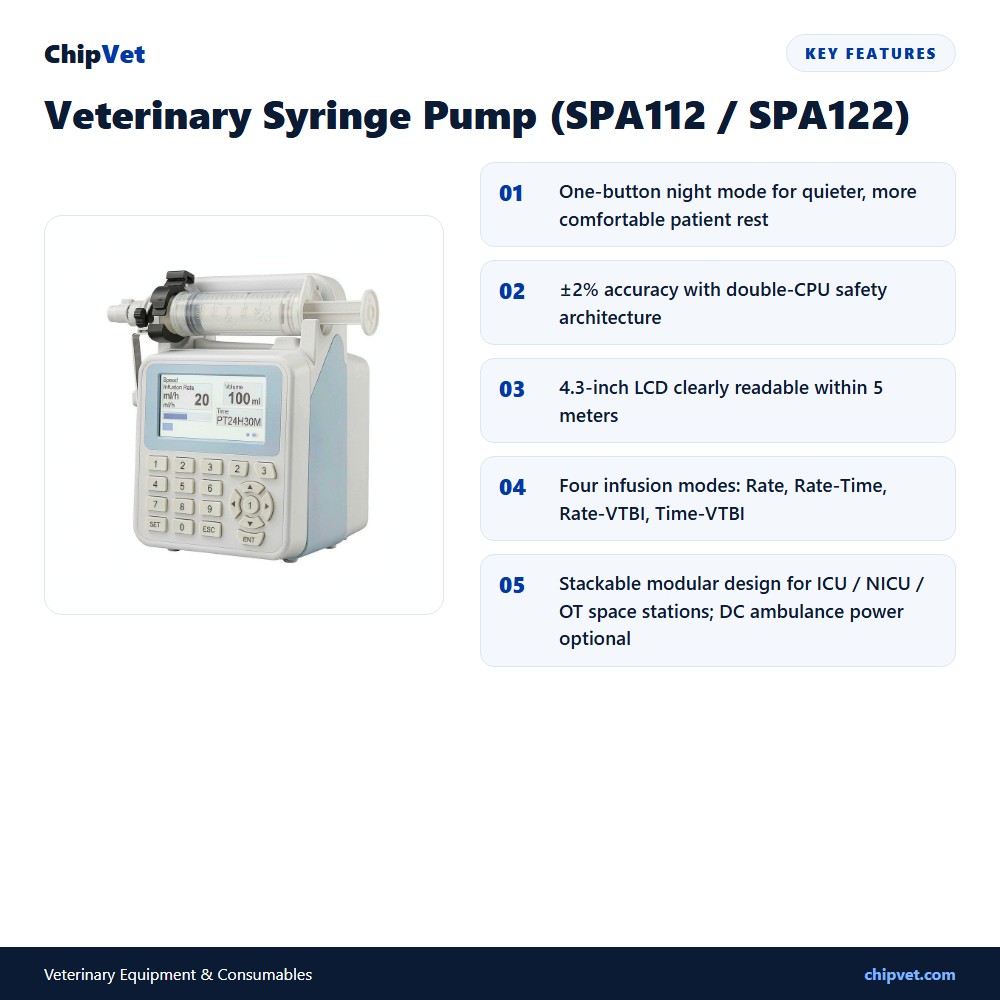

Purpose-built for veterinary clinics, the SPA series accepts 5, 10, 20, 30, 50 and 60 ml syringes of different brands. The one-button night mode lets patients – and their owners – rest comfortably, while the user-friendly numeric keypad and 4.3-inch LCD readable within 5 meters keep operation simple. Four infusion modes (Rate, Rate-Time, Rate-VTBI, Time-VTBI) satisfy different clinical choices, and accuracy is a tight ±2% backed by double-CPU monitoring. SPA112 is single-channel and stackable for easy space stations in ICU/NICU/OT; SPA122 runs two channels independently. Free-stacking of single syringe pumps, DC ambulance power and liquid-drop cover protection complete the package. RoHS and CE qualified.
Key Selling Points
✓ One-button night mode for quieter, more comfortable patient rest
✓ ±2% accuracy with double-CPU safety architecture
✓ 4.3-inch LCD clearly readable within 5 meters
✓ Four infusion modes: Rate, Rate-Time, Rate-VTBI, Time-VTBI
✓ Stackable modular design for ICU / NICU / OT space stations; DC ambulance power optional

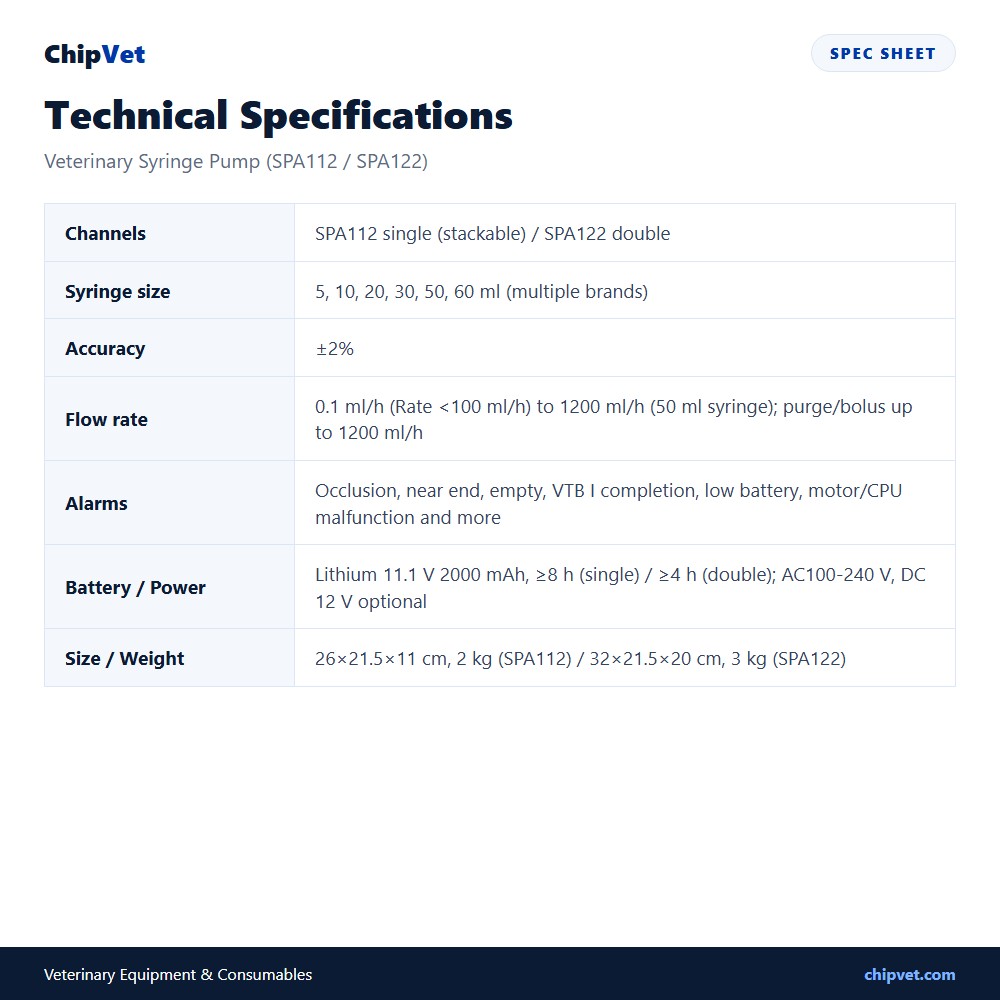

Specifications
| Channels | SPA112 single (stackable) / SPA122 double |
|---|---|
| Syringe size | 5, 10, 20, 30, 50, 60 ml (multiple brands) |
| Accuracy | ±2% |
| Flow rate | 0.1 ml/h (Rate <100 ml/h) to 1200 ml/h (50 ml syringe); purge/bolus up to 1200 ml/h |
| Alarms | Occlusion, near end, empty, VTB I completion, low battery, motor/CPU malfunction and more |
| Battery / Power | Lithium 11.1 V 2000 mAh, ≥8 h (single) / ≥4 h (double); AC100-240 V, DC 12 V optional |
| Size / Weight | 26×21.5×11 cm, 2 kg (SPA112) / 32×21.5×20 cm, 3 kg (SPA122) |
