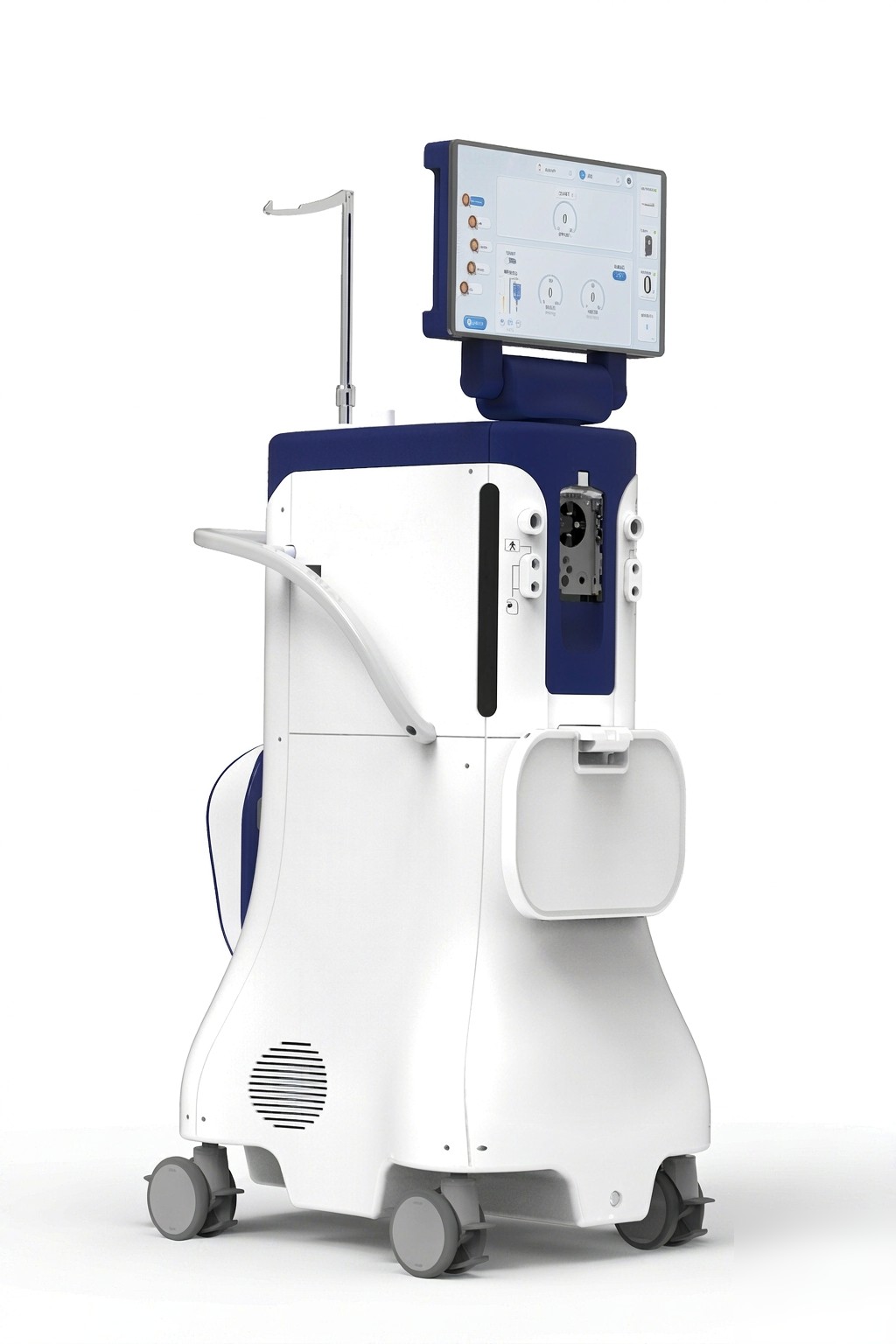

The M1 phaco emulsifier meets the precision requirements of animal cataract surgery. It integrates fluid management, ultrasound emulsification, anterior vitrectomy and bipolar electrocautery in one console with a color touchscreen interface. Surgeons can customize parameters for each surgical step, with graphical animations and voice prompts – a gold-standard platform for veterinary ophthalmology from cataract removal to precise vision restoration.
Key Selling Points
✓ Fully sealed, non-compliant fluid management with pressure sensing (infusion + aspiration pressure sensors)
✓ Vacuum 0-650 mmHg, aspiration 0-60 cc/min, max rebound volume <= 7 ml
✓ 28.5 kHz longitudinal ultrasound, 0-10 W power with linear / fixed / pulsed / burst modes
✓ Pneumatic vitrectomy cutter 0-4000 cpm, supports 23G probes with fragment and I/A modes
✓ Foot-pedal linear control of ultrasound, aspiration and vacuum; motorized IV pole
✓ Color LCD touchscreen with animated, personalized surgical step guidance
Specifications
| Negative pressure range | 0-650 mmHg |
|---|---|
| Aspiration rate | 0-60 cc/min |
| Max rebound volume | <= 7 ml |
| Ultrasound | 28.5 kHz, 0-10 W (75 ohm), longitudinal |
| Pulse mode | 1-100 Hz, duty 0-100% |
| Burst mode | 5-500 ms, interval 0-2500 ms |
| Vitrectomy | Pneumatic, 0-4000 cpm, 23G |
| Display | Color LCD touchscreen |
