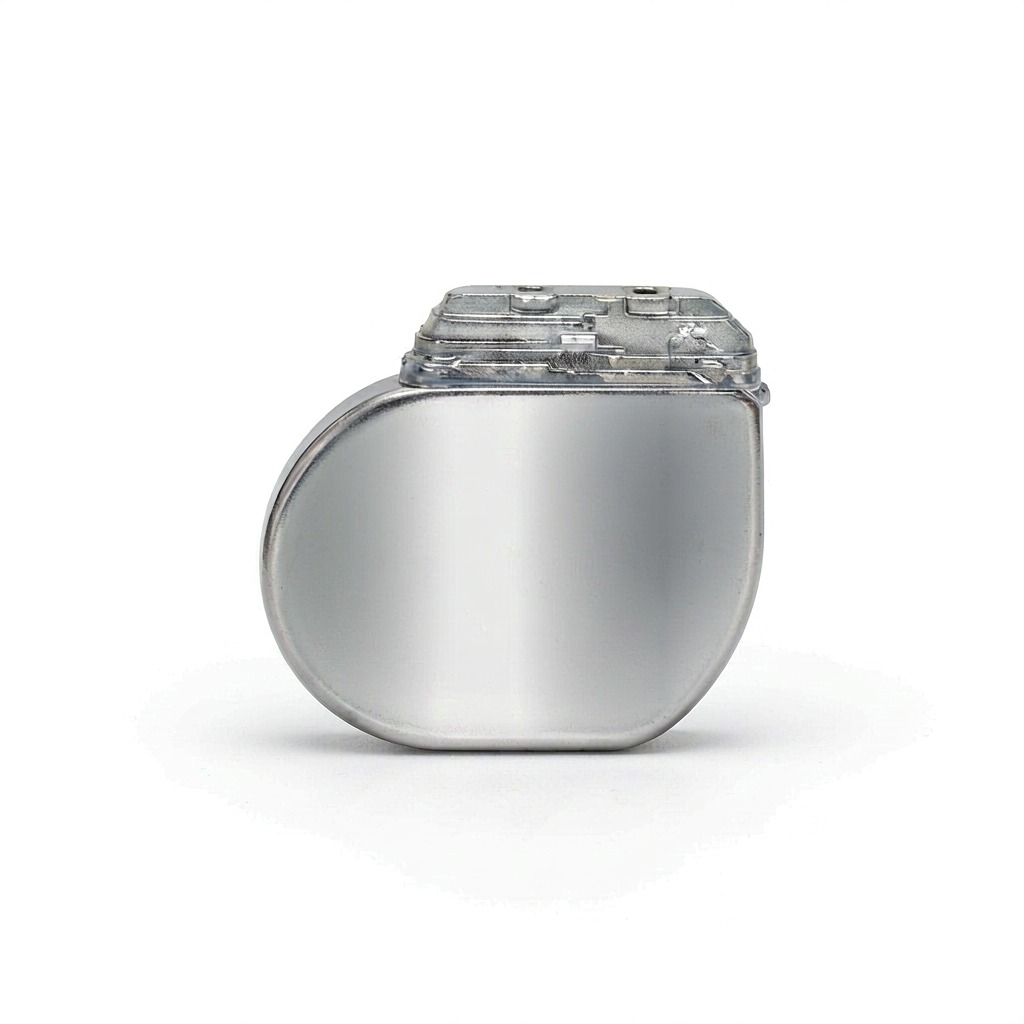

The veterinary cardiac pacemaker system is a complete pacing solution for dogs and cats with bradyarrhythmias. One matched kit combines the pulse generator, the dedicated active-fixation pacing lead and a wireless tablet programmer, covering the entire workflow from implantation to long-term follow-up.
Key Selling Points
✓ Complete kit, nothing missing: pacemaker + matched lead + wireless programmer in one set – simpler purchasing and lower overall cost
✓ Ultra-compact 6.1 mm profile: slimmest generator in its class versus major brands (6.2-8.0 mm), easier pocket placement and suits dogs and cats of all sizes
✓ VVI on-demand pacing: standard sensing and pacing parameters avoid competitive rhythms; wide adjustment range of 30-95 ppm, 1.5-7.5 V output and 0.1-1.5 ms pulse width

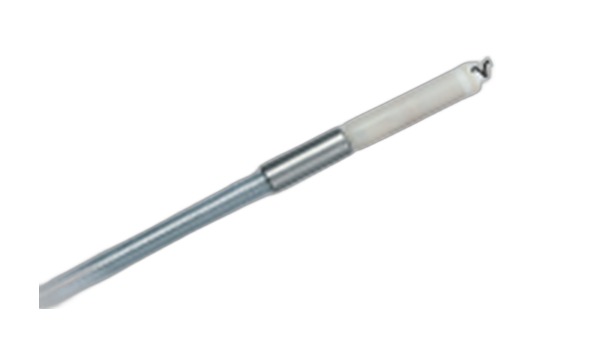

✓ Active-fixation lead: screw-in tip anchors securely in the myocardium for low dislodgement risk, even in complex cardiac anatomy
✓ Steroid-eluting tip: suppresses inflammation, stabilizes pacing threshold and extends both lead and device service life
✓ Minimally invasive implantation: transvenous approach means less trauma, faster recovery and less pain for the patient
✓ Long battery life: low-power design reduces the number of replacement surgeries over the animal’s lifetime
✓ Wireless tablet programmer: non-invasive adjustment of rate, output and sensitivity with real-time battery, impedance and pacing data – outpatient follow-up ready
✓ Biocompatible and stable: highly biocompatible materials, stable sensing, unipolar/bipolar polarity options – fewer complications
Technical Parameters
| Pacing modes | VVI on-demand (single chamber) |
| Basic rates | 30 / 40 / 45 / 50 / 55 / 60 / 65 / 70 / 75 / 80 / 85 / 90 / 95 min⁻¹ |
| Hysteresis | 0-10 / 20 / 35% |
| Amplitude | 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 5.0 / 7.5 V |
| Pulse width | 0.1 / 0.2 / 0.3 / 0.35 / 0.4 / 0.5 / 0.6 / 0.75 / 0.85 / 1 ms |
| Ventricular sensitivity | 0.1 / 1.5 / 2.5 / 5.0 mV |
| Sensing / impedance polarity | Unipolar / bipolar |
| Generator profile | 6.1 mm thin – slimmest versus comparable brands (6.2-8.0 mm) |
