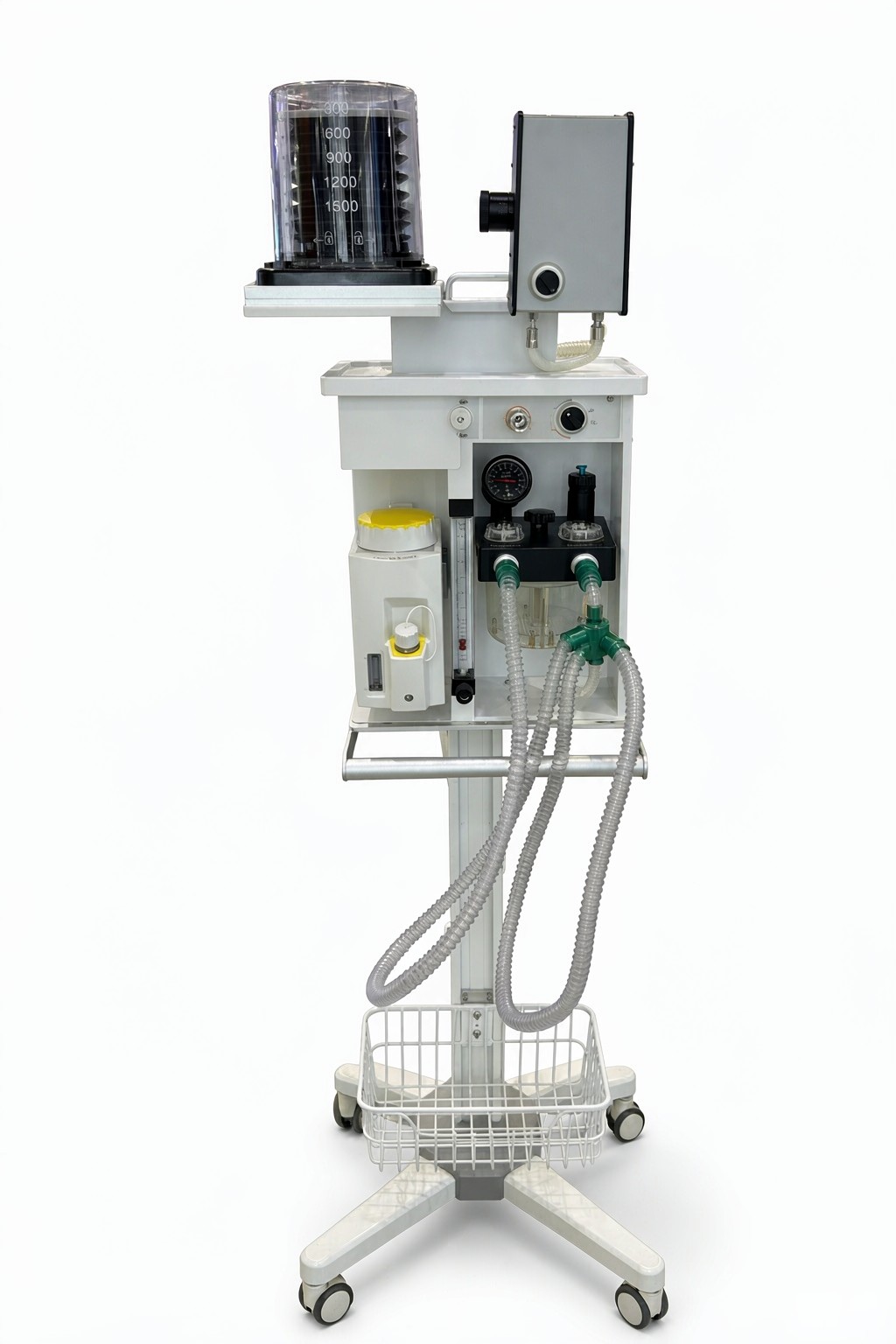

The JX7100MRI is an animal anesthesia machine designed specifically for use in MRI suites. The pneumatic ventilator (inspiration 0.2-2 s, expiration 0.5-4 s, flow 250-1000 ml/s) operates safely in the magnetic environment while the X60 compensated vaporizer and AC300 absorber deliver stable anesthesia. Pressure monitoring from -20 to 100 cmH2O with one-key pressure relief supports positive-pressure ventilation.
Key Selling Points
✓ Purpose-built for MRI rooms – pneumatically driven, magnetically safe ventilator
✓ High-precision X60 isoflurane vaporizer with flow, temperature and pressure compensation
✓ AC300 animal-specific absorber circuit engineered to international standards
✓ One-key pressure relief valve switches quickly to positive-pressure ventilation
✓ 0.8 L sodalime canister for easy replacement; 0-4 L/min high-precision veterinary flowmeter
✓ Complete kit: 22 mm & 15 mm circuits, open circuit, 0.5-3 L reservoir bags, regulators and hoses
Specifications
| Application | MRI rooms |
|---|---|
| Ventilator drive | Pneumatic (gas-controlled) |
| Inspiration / expiration time | 0.2-2 s / 0.5-4 s |
| Flow | 250-1000 ml/s |
| Gas source | Oxygen 0.3-0.4 MPa |
| Flowmeter | 0-4 L/min high precision |
| Vaporizer | X60 isoflurane, compensated |
| Absorber | AC300 animal circuit, 0.8 L canister |
| Airway pressure | -20 to 100 cmH2O |
| Standard kit | 3 circuit sets, 4 reservoir bags, regulator, hoses |
